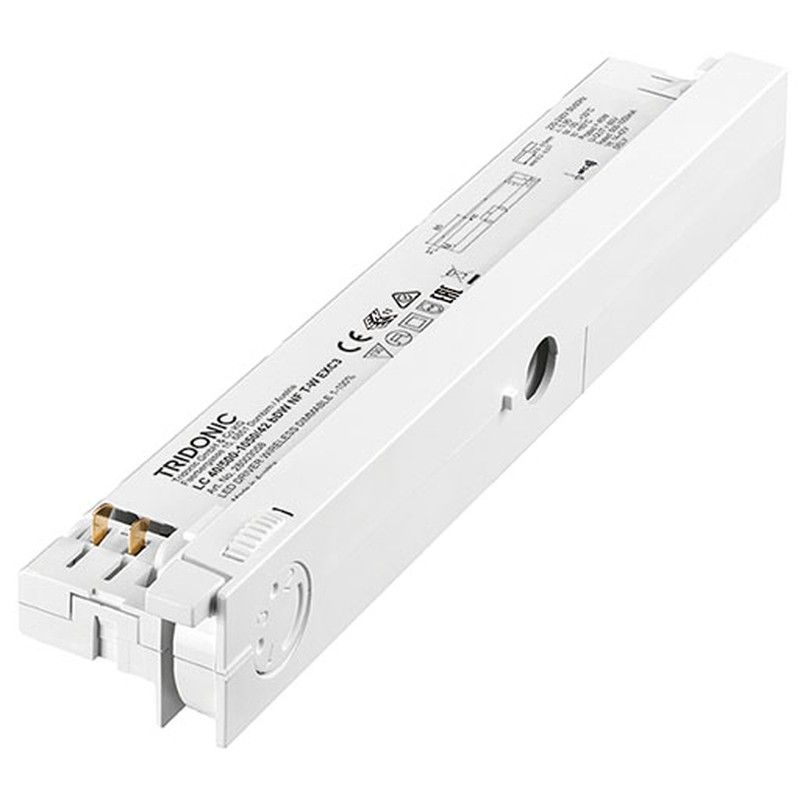

LC 40/500-1050/42 bDW NF T-W EXC3

Can be integrated in Casambi systems (Casambi Ready) ¦ Dimmable constant current / in-track LED driver ¦ Optional accessory ACU ALU NIPPLE M10x1 for mounting the luminaire head ¦ Compatible 3-phase system in-tracks, see data sheet chapter 3.8 ¦ Forms automatically a wireless communication network with up to 250 nodes ¦ Dimming range 1 to 100 % (min. 5 mA) ¦ For luminaires of protection class II ¦ Temperature protection as per EN 61347-2-13 C5e ¦ Adjustable output current between 500 and 1,050 mA via near field communication (NFC) ¦ Max. output power 40 W ¦ Up to 85 % efficiency ¦ Power input on stand-by < 0.5 W ¦ Nominal lifetime up to 100,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Casing: polycarbonate, black, white or grey ¦ Type of protection IP20 ¦ basicDIM Wireless ¦ Near field communication (NFC) ¦ Adjustable output current in 1-mA-steps (NFC) ¦ Overtemperature protection ¦ Overload protection ¦ Short-circuit protection ¦ No-load protection ¦ Burst protection voltage 2 kV ¦ Surge protection voltage 1 kV (L to N) ¦ Flexible configuration via companionSUITE (NFC) ¦ Support NFC multiple programming (full carton box) ¦ For spot light in retail and hospitality application
